How do I wire the DPDT Relay Module?

To wire the DPDT Relay Module, first identify the terminals for the input signal and the output connections. Connect the momentary switch to the input terminals, ensuring the correct polarity is observed. The output terminals will connect to your load or device. A clear wiring diagram usually comes with the module, assisting in proper installations. This setup is useful in scenarios like controlling multiple devices or creating custom control panels.

What type of applications can I've used this relay module for?

The ELECTRONICS-SALON relay module is suitable for numerous applications including home automation, industrial control systems, and model trains. It can also be utilized for controlling lights, motors, or other electronic devices that require latching functions. By leveraging its DPDT capabilities, users can easily manage complex systems that require precise control, enhancing functionality in your projects.

Is this relay module compatible with Arduino or Raspberry Pi?

Yes, the DPDT Relay Module can be readily integrated with Arduino and Raspberry Pi. By connecting the control signal from the GPIO pins of these microcontrollers, users can build custom automation systems. This compatibility expands its functionality in programming tasks, allowing users to automate various tasks and projects seamlessly with code-driven control.

What are the voltage requirements for this relay module?

The ELECTRONICS-SALON relay module operates at a rated voltage of 12V. It is important to supply the module with the correct voltage to ensure optimal performance. Integrating it with power supplies of appropriate ratings can help maintain stability in your automated systems, preventing potential damage or malfunction during operation.

Can I use this relay module to control AC devices?

Yes, but with caution. While the relay can handle AC voltage, it is essential to ensure that the specifications match the requirements of the AC devices you plan to control. The DPDT functionality allows switching between different circuits, enabling control over AC light fixtures or appliances. Ensure all safety measures and proper insulation are in place to prevent hazards when working with AC circuits.

What are the differences between momentary and latching switches?

Momentary switches activate a circuit only when pressed, returning to the off state when released. Latching switches, in contrast, remain on once activated until reset. This relay module utilizes a latching mechanism, perfect for applications where you want a device to stay on after a single press, enhancing ease of use in control scenarios like starting motors or turning on lights.

What kind of load can the relay control?

The load capacity of the relay is dependent on its specifications, with this module usually handling low to moderate power levels. Typically, you can control devices like small motors, lamps, or other electronics that do not exceed the relay’s ratings. Knowing the load ratings helps users to choose appropriate devices for reliable functionality in various applications.

How do I ensure the relay module works safely and effectively?

To ensure the relay module functions safely, it’s important to follow the manufacturer’s specifications regarding voltage and load limits. Additionally, proper wiring practices, including using appropriate gauge wires and terminal connections, can prevent overheating and short circuits. Regular maintenance checks on the module are also recommended, especially in continuous operation scenarios like automation setups.

Come acquistare ELECTRONICS-SALON Panel Mount online da Ubuy?

È facile acquistare ELECTRONICS-SALON Panel Mount online da Ubuy.. Devi solo cercare il prodotto, scegliere il metodo di spedizione durante il check-out e farlo consegnare alla tua posizione.

ELECTRONICS-SALON Panel Mount è disponibile per gli acquisti online in Italy?

Sì, su Ubuy Italy questo prodotto è disponibile per gli acquisti a un prezzo ragionevole.. Il ELECTRONICS-SALON Panel Mount non è disponibile localmente ma puoi fidarti di noi con i nostri servizi di spedizione espressa.

Quanto tempo ci vuole per ottenere il prodotto dopo aver effettuato l'ordine?

I tempi di consegna del prodotto ordinato variano in base a ciò che hai ordinato e al metodo di spedizione che hai scelto.. Il tempo di consegna stimato viene menzionato durante il processo di pagamento, quindi sii spensierato durante lo shopping.

Electronics-Salon Visualizza originale

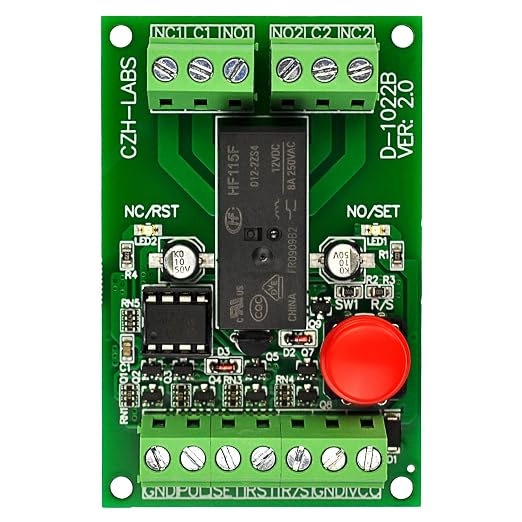

ELECTRONICS-SALON Panel Mount Momentary-Switch/Pulse-Signal Control Latching DPDT Relay Module,12V

Support on board momentary switch, single/double external momentary switches and pulse signal, four control modes.

Electronics-Salon

Articolo #: 9901817

ELECTRONICS-SALON Panel Mount Momentary-Switch/Pulse-Signal Control Latching DPDT Relay Module,12V

Q: What is the purpose of the ELECTRONICS-SALON Panel Mount Momentary-Switch Pulse-Signal Control Latching DPDT Relay Module?

This relay module is designed to control various devices with a simple switching mechanism. It allows users to create latching control applications where an input signal can be used to turn devices on or off. By employing double pole, double throw (DPDT) functionality, it enables flexible wiring configurations for different operational needs, making it ideal for automation and remote control projects.

Q: Where can I buy the ELECTRONICS-SALON Panel Mount Momentary-Switch Pulse-Signal Control Latching DPDT Relay Module,12V?

You can purchase the ELECTRONICS-SALON Panel Mount Momentary-Switch Pulse-Signal Control Latching DPDT Relay Module,12V from Ubuy. Ubuy offers a range of electronic components, catering to customers in Italy. Their user-friendly platform allows you to explore various options and find the right products for your electronic projects.

88% degli intervistati lo consiglierebbe a un amico

Articolo #: 9901817

€ 23

Dettagli del prezzo

Escluse spese di spedizione e doganali ( Le spese di spedizione e doganali saranno calcolate al momento del pagamento )

^{*Tutti gli articoli verranno importati da Stati Uniti}

Disponibilità : Disponibile

Importato dal negozio USA

Qtà:

Ordina subito e ricevilo entro Sabato, Ottobre 10

Transazione sicura

I nostri principali partner logistici

Support on board momentary switch, single/double external momentary switches and pulse signal, four control modes.

Garanzia U-Care:

Nessuna

Seleziona un piano

Compra ora, paga dopo

Consegna
veloce

Reso
gratuito^*

Imballaggio sicuro

Prodotti originali al 100%

Conformità PCI DSS

Certificazione ISO 27001

Note: Step Down Voltage Transformer required for using electronics products of Stati Uniti store (110-120). Recommended power converters Acquista ora.

Cosa salta all'occhio

Momentary Action

This relay module allows for pulse-signal control, enabling efficient momentary actions for various applications. Its design optimizes performance in scenarios requiring essential control without unwanted latching.

Latching DPDT Relay

The latching functionality offers reliable toggle between states, saving energy and providing consistent operation. This feature is ideal for advanced control systems where maintaining state is crucial.

Easy Panel Mount

Designed for straightforward installation, this panel mount relay simplifies setup in any project. Its compact design and versatile connectivity ensure user-friendly integration into existing electrical systems.

Dettagli del prodotto

Panel Mount momentary switch/pulse signal control latching DPDT relay module
Supports on-board momentary switch, single/double external momentary switches, and pulse signal
LED indication for relay set and reset action
G2RL-2 8 Amp DPDT power relay
Power off relay state memory, retains previous state after power restoration
Control based on MCU PIC12F675, can be reprogrammed if familiar with PIC firmware
Panel mount version with dimensions of 72.5 x 47.4 x 18mm (L x W x H)
Operating voltage: 9 to 15.6VDC, Operating current: 50mA at 12VDC
Relay switch type: DPDT, Capacity: 8Amp at 250VAC/30VDC
Pulse mode signal level: High 3~5V, Low 0V
Pulse signal hold time: High level 1mS minimum, Low level 1000mS minimum
Terminal block characteristics: Wire range 26-12AWG, Mechanical torque 0.4Nm(3.5Lb-In.), Strip length 7mm, Pitch 5.0mm(.197), Screws M2.5

Connector Type	Screw
Contact Type	2no 2nc
Current Rating	8 A
Mounting Type	Panel Mount
Operation Mode	Off
Coil Voltage	12 volts
Contact Current Rating	8 A
Maximum Switching Current	8 A
Maximum Switching Voltage	12 volts
Minimum Switching Voltage	9 volts_of_direct_current
Contact Material	Silver
Brand Name	Electronics-Salon
Unit Count	1 Count
Number of Items	1
Manufacturer	Electronics-Salon
Part Number	MD-D1022B/12V-1
Specification Met	Ma
Item Weight	0.5 lbs (230 grams)

A chi è consigliato?

DIY Electronics Hobbyists
Ideal for hobbyists looking to create custom electronic projects requiring reliable relay modules and user-friendly interfaces.
Automation Projects
Useful for automation projects where precise control of electrical devices or circuits is necessary with momentary switch functionality.
Model Train Enthusiasts
Perfect for model train setups that require switching tracks and circuits with minimum hassle and maximum control.

Heavy Industrial Use
Not suitable for heavy-duty industrial applications requiring robust and high-capacity relays for large machinery control.

DESCRIZIONE DEL PRODOTTO

About This Item

Introducing the ELECTRONICS-SALON Panel Mount Momentary-Switch Pulse-Signal Control Latching DPDT Relay Module,12V. This reliable and versatile relay module is perfect for various control applications. Featuring a compact panel mount design, this module is assembled with meticulous attention to detail and undergoes rigorous electrical testing to ensure optimal performance and durability.

Designed to support multiple control modes, this module is compatible with on-board momentary switches, single or double external momentary switches, and pulse signal inputs. LED indicators provide clear visual cues for relay activation and deactivation. Equipped with the powerful G2RL-2 8 Amp DPDT power relay, this module can handle high-capacity loads, making it suitable for a wide range of applications.

The relay also offers power-off state memory, automatically reverting to its previous state upon power restoration. For those with programming experience, this module is based on the MCU PIC12F675 flash microcontroller, allowing for customization and firmware redesign. With dimensions of 72.5 x 47.4 x 18mm (L x W x H) and a panel mount design, this module is easy to install and integrate into your existing setup.

In terms of electrical parameters, the operating voltage ranges from 9V to 15.6VDC, with a current consumption of 50mA at 12VDC. The G2RL-2 12VDC relay switch has a capacity of 8Amp at 250VAC/30VDC. Pulse mode signal levels are compatible with 3~5V for high and 0V for low.

The minimum pulse hold time is 1mS for high level and 1000mS for low level, with rising pulses triggering the relay. The terminal block features a wire range of 26-12AWG, mechanical torque of 0.4Nm (3.5Lb-In.), and a strip length of 7mm. With a pitch of 5.0mm and M2.5 screws, it ensures reliable and secure connections.

Trust ELECTRONICS-SALON for top-quality and reliable electronic components. Upgrade your control system with the Panel Mount Momentary-Switch Pulse-Signal Control Latching DPDT Relay Module today.

Hai qualche domanda? chatta con noi

Domande e risposte dei clienti

Domanda: Come acquistare ELECTRONICS-SALON Panel Mount online da Ubuy?

Risposta: È facile acquistare ELECTRONICS-SALON Panel Mount online da Ubuy.. Devi solo cercare il prodotto, scegliere il metodo di spedizione durante il check-out e farlo consegnare alla tua posizione.
Domanda: ELECTRONICS-SALON Panel Mount è disponibile per gli acquisti online in Italy?

Risposta: Sì, su Ubuy Italy questo prodotto è disponibile per gli acquisti a un prezzo ragionevole.. Il ELECTRONICS-SALON Panel Mount non è disponibile localmente ma puoi fidarti di noi con i nostri servizi di spedizione espressa.
Domanda: Quanto tempo ci vuole per ottenere il prodotto dopo aver effettuato l'ordine?

Risposta: I tempi di consegna del prodotto ordinato variano in base a ciò che hai ordinato e al metodo di spedizione che hai scelto.. Il tempo di consegna stimato viene menzionato durante il processo di pagamento, quindi sii spensierato durante lo shopping.

Electronics-Salon Pushbutton Switches Editorial Review

The ELECTRONICS-SALON Panel Mount Momentary-SwitchPulse-Signal Control Latching DPDT Relay Module,12V is highly recommended by customers for its versatility and design. The output channels 2 & 3 of the relay operate together, with set and reset functions taking place on the input side. The product has power off relay state memory and when power is reconnected to it, the relay will revert to its previous state. The relay is good for applications such as tank selectors in cars and RO water systems.

Recensioni e valutazioni dei clienti

4.2

67 valutazioni dei clienti

5 stella

66%
4 stella

10%
3 stella

10%
2 stella

4%
1 stella

10%

Recensisci questo prodotto

Condividi le tue impressioni con altri clienti

Vantaggi

Versatile
Well-designed
Sharp click when the relay energizes and de-energizes
Has power off relay state memory

Contro

More sensitive than the SPDT version; false triggered by stray signals
